Products / Surge Protective Device
Coaxial cable SPDs SA-ITV series : CS series, OAST series

<Products Number>
・SA-ITV J series  ・CS-FPJ75-T230
・CS-NPJ50 series ・OAST50B
・OAST75F    ・OAST50N/4

<General Information>
Otowa High Frequency Surge Protective Devices for coaxial cable are generally applicable for various signals lines. They are designed and tested to manage the transient overvoltages caused by lightning strikes on coaxial cables even sometimes connected directly to outside aerials. The coaxial product lines cover the TV and ITV system and others with C2 and D1 impulse durability. They are avaiable with N, BNC, F connections.

<Features>
- IEC category C2, D1 lightning durability
- Superior high frequency performance
- Protect surges from aerial antenna of Digital TV, BS, CS broadcasting line
- C2 : 8/20μs 5kA, D1 : 10/350μs 2kA
- SA-ITV series covers DC powered signal line

<Product Types>

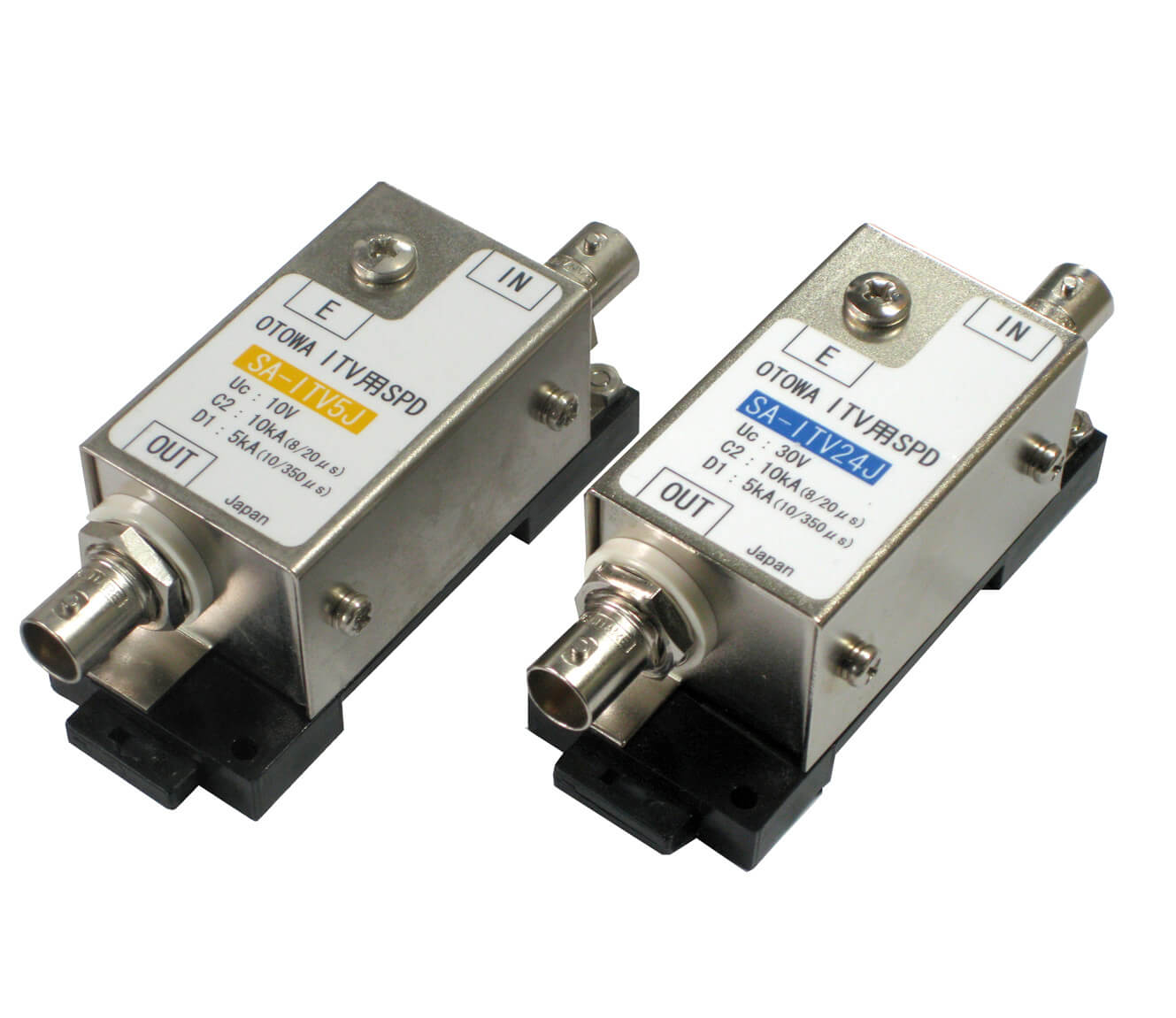

- ITV System protection : SA-ITV5J, SA-ITV24J
- TV line protection : CS-FPJ75-T230
- N connection, wide bandwidth : CS-NP J50 series
- Outdoor applicable BNC, F, N connection, HF lines : OAST50, 75 series
Contactus Download
1 factory l Close
Specifications
Low-voltage electronic equipment, which is susceptible even to the effects of minute lightning surges, need to be thoroughly inspected and studied in conjunction with surrounding weather condition and other physical conditions, thus for determining the nature of lightning in that region, effective surge protection measures corresponding to each factor are required. Otowa accurately tackles all consulting projects related to domestic and overseas lightning surge and noise troubles, and offers services as full-scale consultant for total support of optimum lightning surge and noise protection systems.

Application Examples

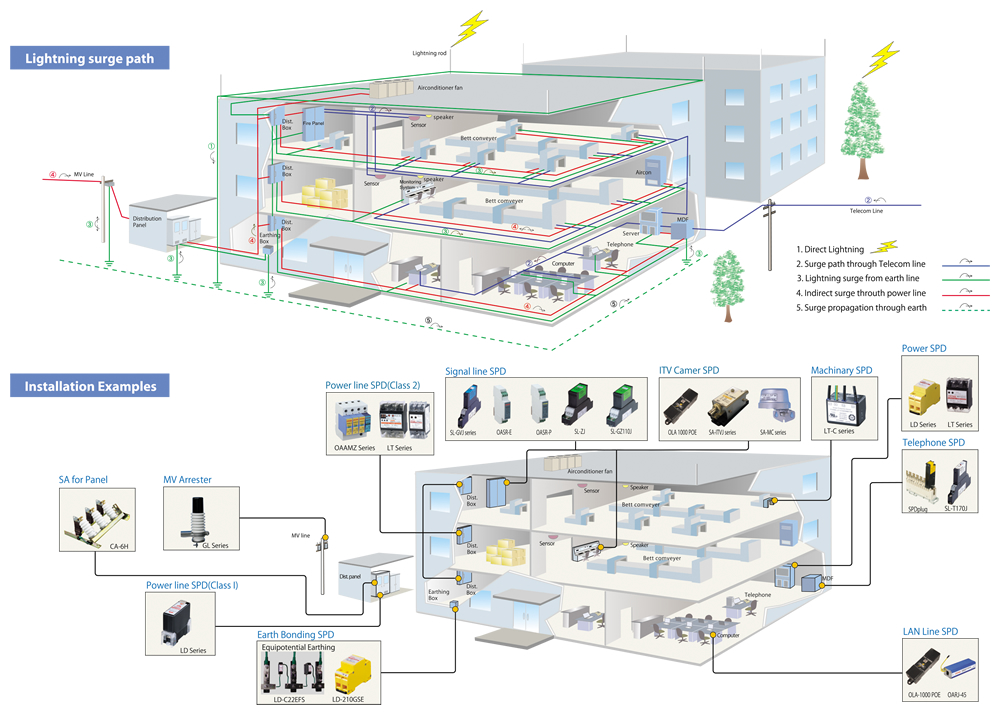

Thumb 1 factory l

Factory

Thumb 1 sewage l

Sewage

Thumb 1 sun l

Sun

Thumb 1 wind l

Wind
